- Can be used for oils and fats, fat-related foods and general foods, conformed to Foods.Conformed to “Food Sanitary Law, Notification of Ministry of Health, Labour and Welfare No.201” (All items including heptanes).
- Hygienic, can be cleaned with hot water※1, with 95% Ethanol.
- Can be incinerated by fire after use, no noxious gas※2 is generated (ash less than 0.1%).

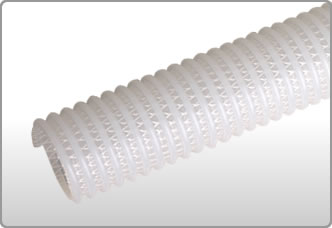

- Translucent wall enables visual check of the material flow.
- With reinforcing fiber, can withstand pressure Max.0.5Mpa (5.1kgf/cm2).
- Lightness enable the hose to float on water.
- ※1.Conditions of Hot Water Washing: Temperature: 80°C or less,Pressure: 0.1MPa or less, Pressurization time: up to 30 minutes.
- ※2.Hydrogen chloride, SOx, NOx, Hydrogen cyanide, and Ammonia.
- For transportation of food oil, alcoholic drinks such as Sake,Liquor, soft drinks, etc (Liquid and powder conveying)
- ※Please take a range of 0°C to 60°C as standard allowable temperature, subject to change of allowable pressure depending on use temperature.In case of continuous use, 50°C or less is recommended.
- ■CAUTIONS
※Please avoid the use and storage over the long period of time in the outdoors.
| Fluid | Water・hot water、Food、Chemical (including pure water）、Oils |
|---|---|
| Material | Non-PVC |
| Temperature | 0 ～ 60 |
| Function | ・Conforms to Ministry of Health,Labour and Welfare Notifications ・Excellent madical durability ・Having transparency (translucent) ・Low odor ・Can be incinerated by fire after use ・Heat resistant ・Oil resistant ・Abrasion resistant |
| Nominal diameter |
Inside Diameter mm |
Outside Diameter mm |
Pitch mm |
Weight (reference) g/m |
L/coil m |
Allowable pressure (at room temperature) MPa{kgf/cm2｝ |
Allowable bending radius mm |
|---|---|---|---|---|---|---|---|
| 25｛1｝ | 25.4 | 37.4 | 7.8 | 360 | 50 | 0.5｛5.1｝ | 120 |
| 32｛1¼｝ | 32.0 | 44.0 | 9.0 | 455 | 150 | ||
| 38｛1½｝ | 38.0 | 51.0 | 10.0 | 580 | 240 | ||
| 50｛2｝ | 50.8 | 64.8 | 10.5 | 820 | 300 |
