SHIMETAC for TOTAKU FLUORO
SHIMETAC for LINE POWER-AT
SHIMETAC for LINE ACE
SHIMETAC for TOTAKU ECO LINE

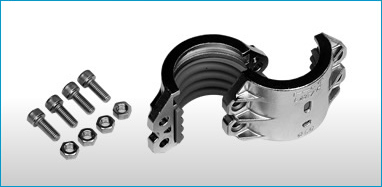

Features of SHIMETAC Series
■Attaching and detaching work of the couplings on the job site is easy.
■Allowable pressure of the hose with which SHIMETAC is connected is equal to that of the hose only.
■Reliable stopper structure.

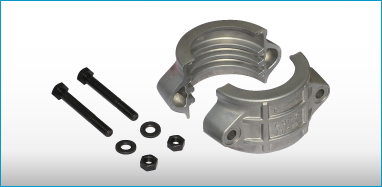

| Nominal diameter |
T | W | H | Bolt size |
|---|---|---|---|---|
| 25 | 81 | 50 | 46 | M8 |
| 38 | 97 | 60 | 61 | M8 |
| 50 | 108 | 65 | 75 | M8 |
(Unit:mm)
| Pressure resistance performance: | The special stopper device structure further improves pressure resistance performance |
|---|---|
| Materials: | The holder is made of SCS14 (equivalent to SUS316), the bolt and nut is made of SUS304, the packing is made of silicon. |
| Bolt: | The top of hexagon hole enables easy and reliable tightening |
| Working property: | Easy to connect on the job site |
|---|---|
| Economy: | Can use repetitively |
| Water collecting: | The new shape of the nipple end avoids the collecting water on the inside of the hose’s wall. |
※ Please make sure to use the original nipple for SHIMETAC. For details, please inquire to us.
- Reliable stopper structure.
- Allowable pressure of the hose with which SHIMETAC is connected is equal to that of the hose only.
- Attaching and detaching work of the couplings on the job site is easy.
- Nominal Dia. of 50, 65, 75, 100mm are available.
- (Note)PT Nipple made of the resin is available only in sizes of 38 and 50mm.S-Collar Nipple, M1 Nipple, Nipple with JIS10KF,
| Nominal diameter |
T | W | H | Bolt size |
|---|---|---|---|---|
| 50 | 113 | 63 | 79 | M8 |
| 65 | 131 | 78 | 97 | M8 |
| 75 | 153 | 90 | 112 | M10 |
| 100 | 182 | 105 | 142 | M10 |
（Unit:mm）

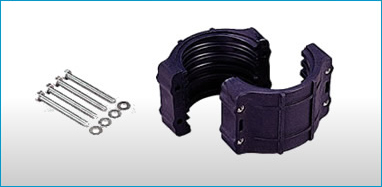

- Reliable stopper structure
- It is lightweight due to being made by the resin.of the weight of metal couplings.
- Allowable pressure of LINE ACE with which SHIMETAC is connected is equal to that of the hose only.
- Attaching and detaching work of the couplings on the job site is easy.
- It doesn't rust due to being made by the resin.
- Has a high durability. (Proven upon the repeating pressure test) SHIMETAC was installed at both ends of LINE ACE placed in a straight form, and then 0-0.5MPa pressure was repeatedly applied to them in every 20 seconr-cars.
Result：100,000 times for all sizes, with no trouble.
- Nominal Dia. of 38, 50, 65, 75 and 100mm are available.
(Note)PT Nipple made of the resin is available only in sizes of 38 and 50mm. - Besides the newly released PT Nipple and S Collar Nipple (both made of plastic), Nipple with JIS10KF (made of iron or SUS), M1 Nipple, S-Collar Nipple, G-Collar Nipple and Both Mouth Nipple (made of iron) are available as special order items.
| Nominal diameter |
T | W | H | Bolt size |
|---|---|---|---|---|
| 38 | 85 | 58 | 66 | M8 |
| 50 | 104 | 63 | 81 | M8 |
| 65 | 120 | 77 | 94 | M8 |
| 75 | 135 | 88 | 108 | M8 |
| 100 | 164 | 105 | 136 | M8 |
（Unit:mm）

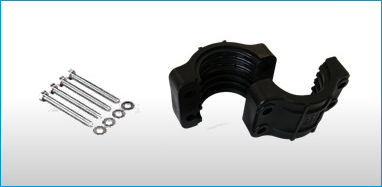

- Cleansing with couplings removed became possible
- Reliable stopper structure.

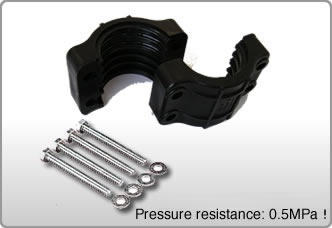

- This resin-made coupling is as lightweight as one half of the weight of metal couplings. Allowable pressure of TOTAKU ECO LINE with which SHIMETAC is connected is equal to that of the hose only.
- Attaching and detaching work of the couplings on the job site is easy.
- It doesn't rust due to being made by the resin.Has a high durability.
- Nominal Dia. of 38, 50, 65, 75mm are available.
- （Note）PT Nipple made of the resin is available only in sizes of 38 and 50mm.

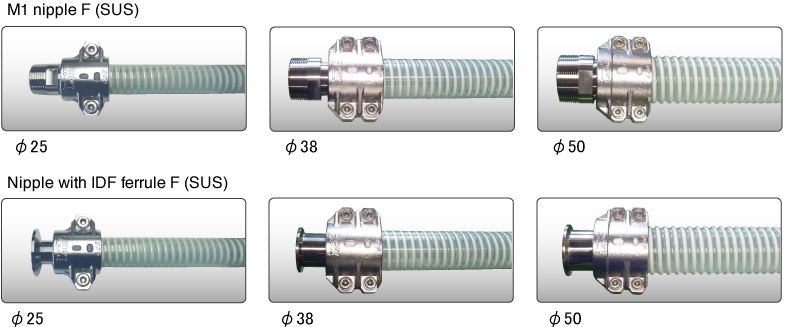

- S-Collar Nipple, M1 Nipple, Nipple with JIS10KF, Both Mouth Nipple (made of SUS) and Kamlok(made of SUS) are available.

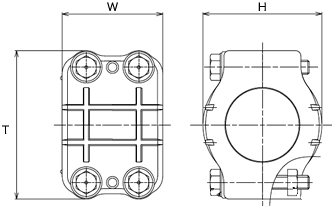

| Nominal diameter |
T | W | H | Bolt size |
|---|---|---|---|---|
| 38 | 85 | 58 | 66 | M8 |
| 50 | 104 | 63 | 81 | M8 |
| 65 | 120 | 77 | 94 | M8 |
| 75 | 135 | 88 | 108 | M8 |
（Unit:mm）
